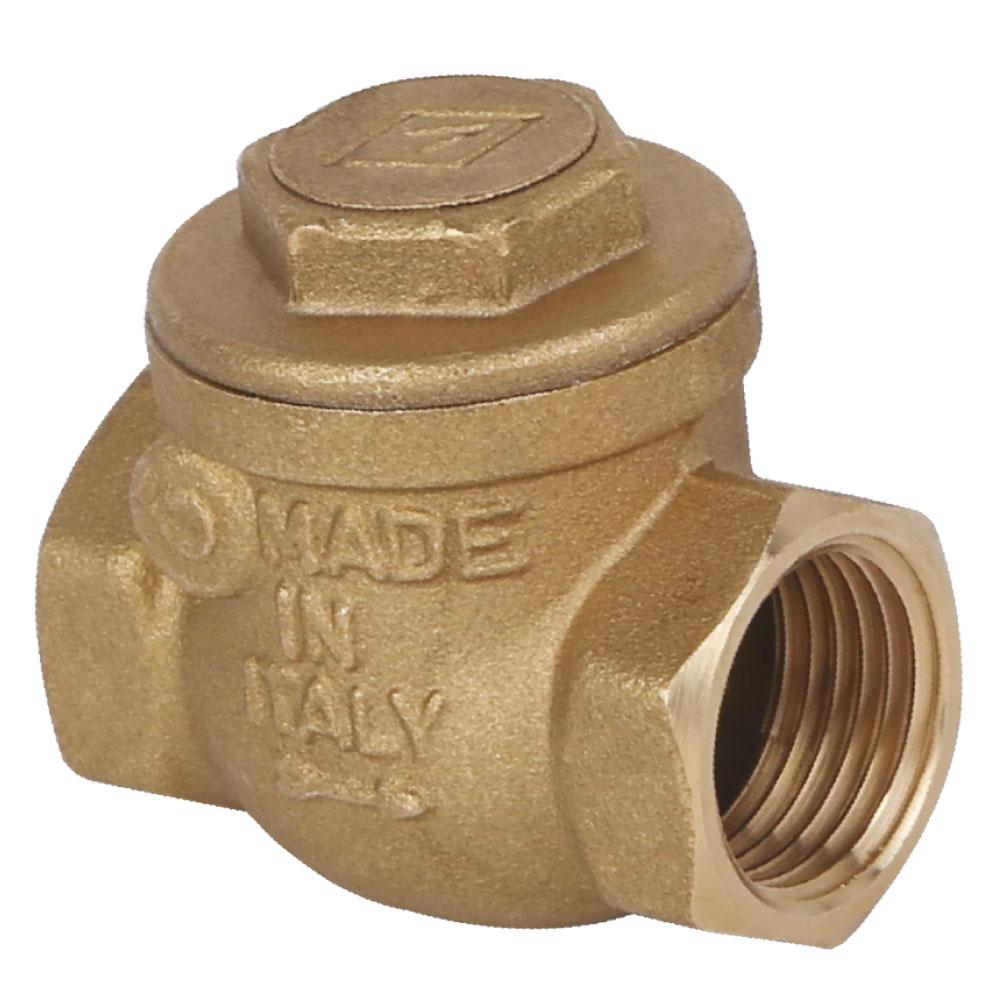

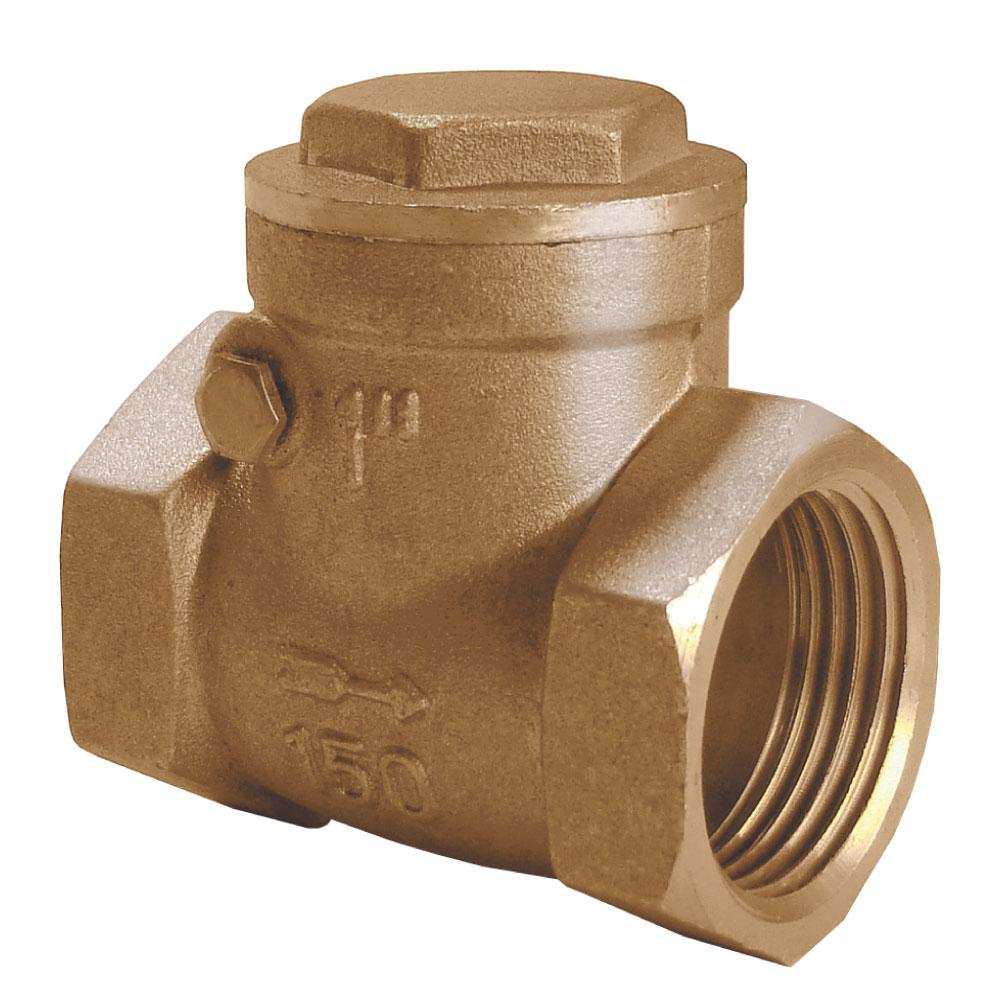

A swing check valve consists of a flap or disc of the same diameter as the pipe bore, which hangs down in the flow path. With flow in the forwards direction, the pressure of the fluid forces the disc to hinge upwards, allowing flow through the valve. Reverse flow will cause the disc to shut and stop the fluid going back down the pipe. In the absence of flow, the weight of the flap is responsible for the closure of the valve.
Product Information:
| No. | Size (inch) | H.P | Des |
| 44-5250 | 1/2 | -- | -- |
| 44-5251 | 3/4 | -- | -- |
| 44-5252 | 1 | -- | -- |
| 44-5254 | 1.5 | -- | -- |
| 44-5255 | 2 | -- | -- |
